Variation of sexual dimorphism of the wing shape in the family Dolichopodidae (Diptera)

Cover Page

Cite item

Abstract

Although sexual dimorphism manifestations are widespread in the family Dolichopodidae, a detailed characterization of their phylogenetic significance is lacking. In order to study the distribution patterns of wing sexual dimorphism, we have analyzed 57 species from 17 genera of 9 subfamilies. A comparative analysis of the evidence, obtained by geometric morphometry and molecular data, allowed us to assess the phylogenetic signal in the sexual dimorphism of the wing. The results of the study confirm the presence of diverse patterns of sexual variability in the wings of this family. More often, females have larger wings with blunted apexes, whereas males are characterized by a more pointed apex. In some cases, the larger size of females’ wings is associated with an increase in the body size, while in other cases, differences in shape and size can be explained by differences in behavioural and life patterns. Although there exists a general pattern of sexual dimorphism, its features differ even in closely related species. The absence of a significant phylogenetic signal in seven out of nine studied wing points indicates that the sexual dimorphism in form evolved, at least partially, in each of the studied species.

Full Text

Sexual dimorphism is a phenomenon frequently encountered in the Dolichopodidae family. The most frequent characters of sexual dimorphism are various modifications of tarsi (dense pubescence, distention and protrusion, colour changes), wings (colour changes of the wing membrane, thickened costa), postpedicel elongation and modifications of arista (swelling or protrusion). Such indicators are usually used for diagnostics.

However, more impalpable distinctions between females and males, such as wing shape, are characteristic of the family, and the types of sexual dimorphism of wing shape change from species to species [1, p. 515]. For example, it is found that Argyra Macquart, 1834 males perform a mating dance in front of females [2, p. 11], and Poecilobothrus nobilitatus (Linnaeus, 1767) males exhibit aggressive demonstrations and chases in rivalry for females [3, p. 602]. Although behavioural traits are considered more evolutionarily labile, they also often carry a significant phylogenetic signal [4, p. 740; 5, p. 7]. In some cases, the wing shape variability can be caused by considerable differences in the body size of females and males, such as in the Rhaphium appendiculatum Zetterstedt, 1849.

A wide variety of sexual dimorphism of the wing shape suggests intensive selection. Along with traditional morphological and molecular traits, signs of sexual dimorphism are also a resource for phylogenetic constructions, although such studies are much rare. Thus, a phylogenetic signal in the sexual dimorphism of the wing shape is evident among the Drosophila Fallén, 1823 species [6, p. 110]. And what is interesting is the phylogenetic reconstruction of the development of elongated ocelli among males in the family Diopsidae [7, p. 1373].

On the other hand, similar manifestations of sexual dimorphism often occur among non-closely related species. Examples include the formation of an elongated exoskeleton among cheese flies and nereid [8, p. 602], wing spots among fruit flies [9, p. 322], and protrusion and distention on the legs and other body parts among the Diptera of various families [10, p. 143]. Therefore, we can expect that some genetic factors play an essential role in forming a specific pattern of sexual dimorphism, which results in a more pronounced convergence in the morphological characters of nonrelated species than can be explained from a functional point of view.

The analysis of molecular data, together with the sexual dimorphism characters of wing shape, will allow us to consider evolutionary trends of sexual dimorphism, reconstruct ancestral forms, and possibly clarify some controversial points of the phylogenetic tree Dolichopodidae. In the current study, we have analyzed the phylogenetic signal of sexual dimorphism in the wing shape to reveal patterns of distribution between subfamilies and genera.

Materials and methods

In total, 5874 specimens of wing of 57 species of 17 genera belonging to 9 subfamilies were studied (table 1). We used individuals that we collected during 2013–2021 as well as those from the collection of the Department of Ecology and Systematics of Invertebrates, Voronezh State University (Voronezh, Russia).

The analyzed molecular matrix included molecular sequences of the mitochondrial gene encoding cytochrome c oxidase (COI) (810 characters). The study included both sequences previously deposited in GenBank (GenBank, 2021) and sequences carried out especially for this study by the Sintol Enterprise (Russia). In total molecular sequences of 57 species were studied. Amplification and sequencing were performed using the methods and primers described in previous studies [12, p. 455; 14, p. 605]. The sequences were aligned manually using BioEdit multiple alignment software [17]. Phylogenetic reconstruction was carried out using the minimum evolution method (ME) in MEGA software [18]. Reliability of inner branches was estimated by the bootstrap method based on 1000 pseudoreplicates.

Wings were digitized at 9 landmarks (fig. 1). Each landmark has been digitized using TpsDig-2.32 software [19].

For comparing overall wing size among different populations we used the isometric estimator known as centroid size, which is defined as the square root of the sum of the squared distances between the center of the configuration of landmarks and each separate landmark [20, p. 56]. Shape variables were obtained through the Generalized Procrustes Analysis [20, p. 106]. Then, the analysis was carried out using the methods of multivariate statistical analysis in MorpholJ software [21].

The canonical variate analysis was used to determine the most important differences between sexes, and the obtained canonical coefficients for each landmark were used in the further analysis. To construct a dendrogram demonstrating the similarity of patterns of wing shape sexual dimorphism, the unweighted pair group method with arithmetic mean was used. The reliability of internal branching was assessed using bootstrap analysis with 1000 replicas. The statistical significance of pairwise differences in mean shapes of males and females was analyzed using permutation tests (10 000 rounds) with Procrustes distances (PD) [21]. The allometric component of sexual shape dimorphism was estimated by a regression of wing shape on centroid size. Allometric regression lines among females and males were assumed to be parallel. The allometric component of sexual shape dimorphism was the shape change predicted by the size difference between sexes, and the non-allometric component was the difference between this and the total sexual shape dimorphism [6, p. 8].

The phylogenetic signal of wing sexual dimorphism was assessed in two ways. First, the phylogenetic tree (fig. 2) was superimposed on the space of shape variation, and then the hypothesis that the phylogenetic signal was absent was tested using a permutation test with 10 000 integrations. The main components of the shape variability were substituted into the nodes of the phylogenetic tree. The p-value was calculated as the fraction of permutations that lead to the length of the tree, which is equal to or less than that observed for the original data [6, p. 9].

Secondly, as a measure of phylogenetic signal of legs morphometric characters, we used Pagel’s lambda (λ) [22] and Blomberg K-statistic [23]. To calculate Pagel’s lambda, the phylosyg function phytools package [24] was used in R environment [24]. Blomberg K-statistic also takes values from zero to one, but if the phylogenetic signal is very high, then K-statistic can rise over one. To calculate Blomberg K-statistic, the Kkalk function picante package was used in R environment [25]. For testing purpose, the indications of differences of the metric from 0, a p-value was obtained by randomizing the trait data 1000 times.



Table 1 – Studied species

Species

Number of specimens

GenBank Accession No. [11]

males

females

Diaphorinae

1

Argyra diaphana (Fabricius, 1775)

22

37

DQ456884.1ᵃ

2

Argyra leucocephala (Meigen, 1824)

15

18

DQ456883.1ᵃ

3

Chrysotus cilipes Meigen, 1824

16

24

DQ456901.1ᵃ

4

Chrysotus neglectus (Wiedemann, 1817)

10

16

DQ456893.1ᵃ

5

Chrysotus suavis Loew, 1857

19

31

DQ456900.1ᵃ

Dolichopodinae

6

Dolichopus acuticornis Wiedemann, 1817

14

36

EU847538.1ᵇ

7

Dolichopus arbustorum Stannius, 1831

24

20

OK335810.1*

8

Dolichopus argyrotarsis Wahlberg, 1850

34

22

OK335811.1*

9

Dolichopus austriacus Parent, 1927

17

9

OK340619.1*

10

Dolichopus brevipennis Meigen, 1824

18

17

AY744186.1ᶜ

11

Dolichopus campestris Meigen, 1824

19

39

AY744212.1ᶜ

12

Dolichopus cilifemoratus Macquart, 1827

35

97

AY958243.1ᶜ

13

Dolichopus claviger Stannius, 1831

20

14

AY744206.1ᶜ

14

Dolichopus discifer Stannius, 1831

41

13

AY744208.1ᶜ

15

Dolichopus jacutensis Stackelberg, 1929

5

2

OK336092.1*

16

Dolichopus kjari Stackelberg, 1929

7

2

OK340624.1*

17

Dolichopus latilimbatus Macquart, 1827

86

77

AY744200.1ᵇ

18

Dolichopus lepidus Staeger, 1842

48

36

AY744202.1ᵇ

19

Dolichopus linearis Meigen, 1824

19

28

AY958239.1ᵇ

20

Dolichopus lineatocornis Zetterstedt, 1843

24

12

OK340614.1*

21

Dolichopus longicornis Stannius, 1831

82

36

AY958240.1ᶜ

22

Dolichopus longitarsis Stannius, 1831

95

110

OK336131.1*

23

Dolichopus meigeni Loew, 1857

12

3

OK491386.1*

24

Dolichopus migrans Zetterstedt, 1843

36

30

OK446551.1*

25

Dolichopus nataliae Stackelberg, 1930

4

3

OK340621.1*

26

Dolichopus pennatus Meigen, 1824

41

40

OK446503.1*

27

Dolichopus plumipes (Scopoli, 1763)

46

44

EU847548.1ᶜ

28

Dolichopus popularis Wiedemann, 1817

9

19

AY744190.1ᶜ

29

Dolichopus remipes Wahlberg, 1839

13

27

OK446520.1*

30

Dolichopus ringdahli Stackelberg, 1930

74

49

OK491385.1*

31

Dolichopus simplex Meigen, 1824

41

42

AY744203.1ᶜ

32

Dolichopus ungulatus (Linnaeus, 1758)

201

112

EU847559.1ᶜ

33

Ethiromyia chalybea (Wiedemann, 1817)

16

10

OM572508*

34

Gymnopternus aerosus (Fallen, 1823)

76

51

AY744194.1ᶜ

35

Gymnopternus celer (Meigen, 1824)

35

24

EU847565.1ᵇ

36

Gymnopternus metallicus (Stannius, 1831)

102

174

AY744197.1ᶜ

37

Hercostomus convergens (Loew, 1857)

114

143

OK561854.1*

38

Hercostomus nigriplantis (Stannius, 1831)

220

125

EU847574.1ᵇ

39

Poecilobothrus chrysozygos (Wiedemann, 1817)

140

37

DQ456948.1ᵃ

40

Poecilobothrus regalis (Meigen, 1824)

450

344

EU847580.1ᵇ

41

Sybistroma binodicornis Stackelberg, 1941

118

44

OL457145.1*

42

Sybistroma crinipes Staeger, 1842

43

44

EU847581.1ᵇ

43

Sybistroma obscurella (Fallen, 1823)

30

30

DQ456918.1ᵃ

Hydrophorinae

44

Hydrophorus borealis Loew, 1857

10

16

DQ456916.1ᵃ

45

Hydrophorus praecox (Lehmann, 1822)

26

36

DQ456940.1ᵃ

Medeterinae

46

Medetera jacula (Fallen, 1823)

8

9

DQ456928.1ᵃ

47

Medetera truncorum Meigen, 1824

10

6

JF716349.1ᵈ

Neurigoninae

48

Neurigona pallida (Fallen, 1823)

30

45

HQ449154.1ᵉ

49

Neurigona quadrifasciata (Fabricius, 1781)

16

23

DQ456911.1ᵃ

Rhaphiinae

50

Rhaphium appendiculatum Zetterstedt, 1849

36

33

DQ456886.1ᵃ

51

Rhaphium commune (Meigen, 1824)

18

28

DQ456889.1ᵃ

Sciapodinae

52

Siapus platypterus (Fabricius, 1805)

18

64

DQ456905.1ᵃ

53

Siapus wiedemanni (Fallen, 1823)

43

44

DQ456950.1ᵃ

Sympycninae

54

Campsicnemus scambus (Fallen, 1823)

179

235

DQ456904.1ᵃ

55

Syntornom pallipes (Fabricius, 1794)

31

50

DQ456944.1ᵃ

56

Sympycnus pulicarius (Fallen, 1823)

114

130

DQ456931.1ᵃ

Xanthochlorinae

57

Xanthochlorus ornatus (Haliday, 1832)

26

8

HQ449168.1ᵉ

Note. ᵃ – [12, p. 468], ᵇ – [13, p. 243], ᶜ – [14, p. 604], ᵈ – [15, p. 665], ᵉ – [16, p. 314] * – sequences were obtained by the authors of this study.



Figure 1 – Wing and landmarks positions

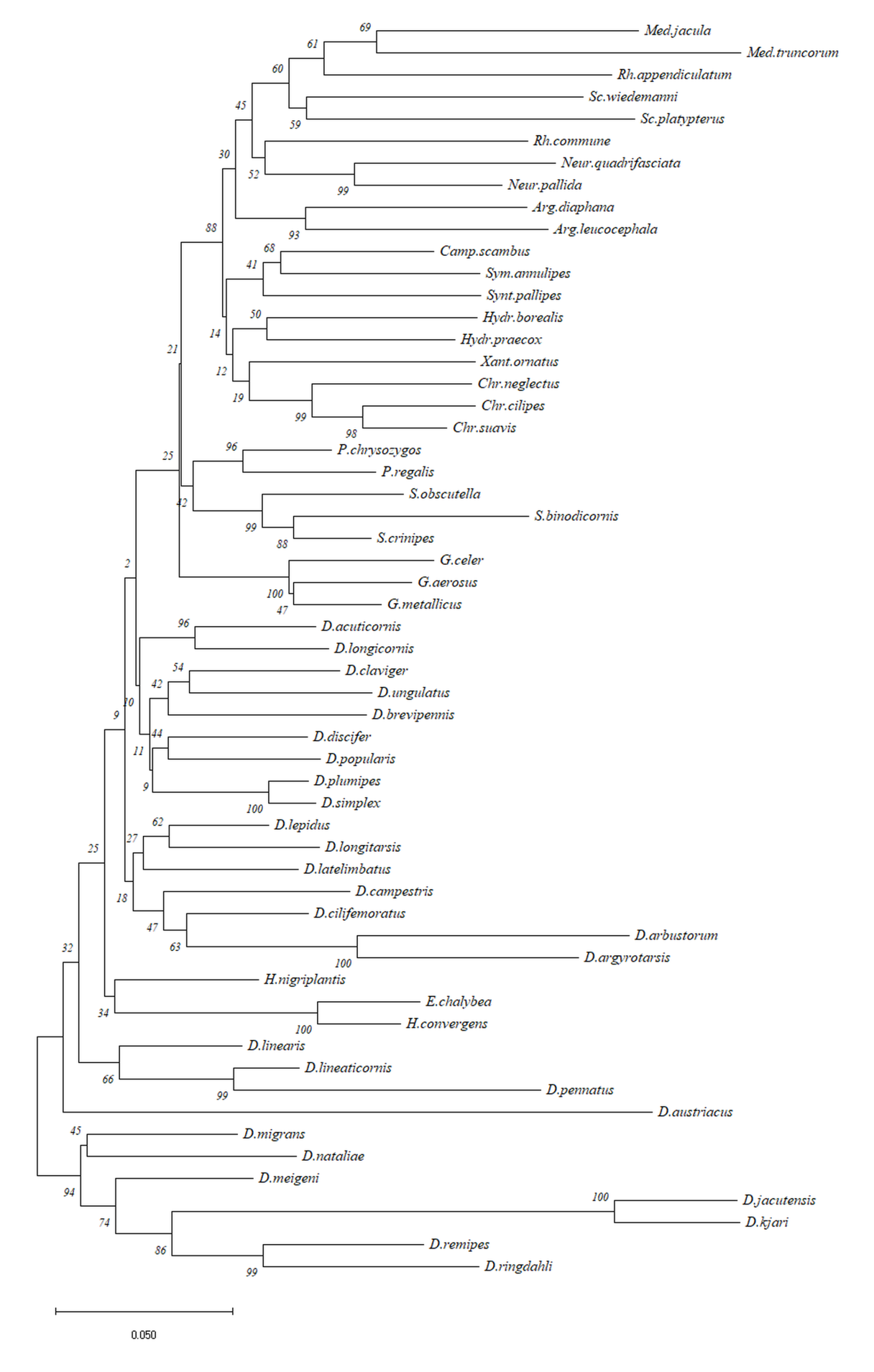

Figure 2 – ME tree, obtained from COI sequences. Values of bootstrap support from 1000 pseudoreplicates are depicted above nodes



Results

The ANOVA demonstrated that the following factors had a significant effect on sexual dimorphism of wing size: «subfamilies × sex» (F = 3,5; df = 8; P = 0,0005); «genera × sex» (F = 17,5; df = 16; P < 0,0001) and «species × sex» (F = 12,0; df = 56; P < 0,0001). This means that significant differences are observed in the sexual dimorphism of wing size between subfamilies, between genera and between species. Moreover, in 44 cases out of 57, the females wing size exceeded the males wing size. Among the species Argyra, Chrysotus, Neurigona, Rhaphium, Sympycnus, Syntormon, and Xanthochlorus, female wings were larger than those of males. Among other species, both situations were encountered.

The smallest sexual difference in size was observed in the species Campsicnemus scambus, the largest in the species Hydr. borealis, Rh. commune and Dol. argyrotarsus (female wings are larger than male wings), as well as Syb. crinipes (male wings are larger than female wings). Among the subfamilies, the largest variation of the difference in wing sizes was characteristic of the Dolichopodinae, the smallest mean value was observed in the subfamilies Medeterinae and Sciapodinae, and the largest in Rhaphiinae.

Differences in sexual dimorphism of wing shape were also significant between subfamilies (Wilks’ Lambda = 0,82; F = 20,3; df = 112, 81806,51; Р < 0,0001), between genera (Wilks’ Lambda = 0,39; F = 51,5; df = 224, 123435,8; Р < 0,0001) and between species (Wilks’ Lambda = 0,07; F = 42,9; df = 784, 157298,4; Р < 0,0001).

The most pronounced sexual dimorphism in the form of a wing was observed among the species Xanth. ornatus (PD = 0,107; P < 0,0001) and Arg. diaphana (PD = 0,117; P < 0,0001), the least pronounced among Gymn. aerosus (PD = 0,006; P < 0,02) and Herc. convergens (PD = 0,006; P < 0,001). Of the subfamilies, the largest variation in PD values was characteristic of Sympycninae, the smallest average PD value was observed in the subfamilies Medeterinae, Hydrophorinae, and Rhaphiinae, while the largest in Sympycninae and Sciapodinae.

The differences in the sexual dimorphism of wing shape most often consisted in the displacement of Landmarks 3 and 4 along the x-axis, as well as Landmarks 5 along the y-axis, which, in the general case, led to the formation of a more elongated wing with a sharp apex among males and a more rounded wing with a blunt apex – among females.

According to the UPGMA-dendrogram, built on the basis of the canonical coefficients of sexual dimorphism, the most similarity in the sexual dimorphism of the wing shape was shown not always by phylogenetically related species. A similar shape dimorphism has been shown for the following species: Dol. longitarsis and Dol. ungulatus (bootstrap index BS = 78), Dol. austriacus and Dol. lineaticornis (BS = 50), Dol. acuticornis and Gymn. aerosus (BS = 53), Syb. binodicornis and Sc. platypterus (BS = 67), Arg. leucocephala and Xanth. ornatus (BS = 54). The sexual dimorphism of the wing shape of the Medetera species was clearly different from the other species of the family (fig. 3).

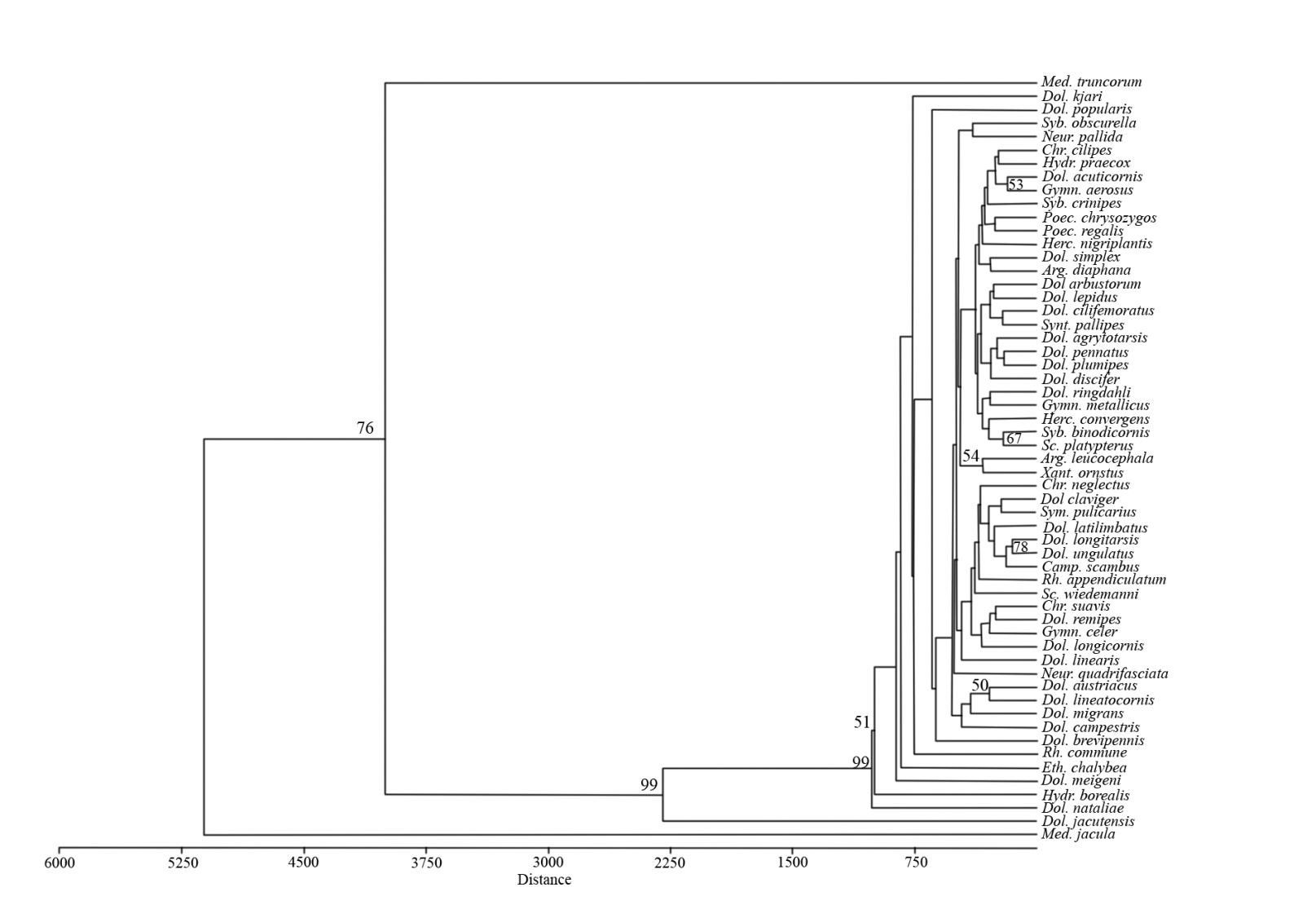

Figure 3 – Results of UPGMA cluster analysis of the canonical coefficients of sexual dimorphism of dolichopodid



It should be noted that the allometric component of sexual dimorphism of the wing shape among most species is expressed insignificantly. The greatest percentage of shape variability associated with the sexual wings size difference was found among the following species: Syb. obscurella (40,9%; P < 0,0001), Dol. meigeni (37,5%; P < 0,0001), Dol. austriacus (34,6%; P < 0,0001), Dol. kjari (33,6%; P < 0,0001), Arg. diaphana (25,7%; P < 0,0001), Neur. quadrifasciata (25,7%; P < 0,0001). The species that showed the largest differences in wing size between females and males did not show a high percentage of allometric variation in shape.

The length of the consensus tree combining the initial molecular data and data on the wing shape changes was 0,1082 (in units of squared Procrustes distance) (fig. 4). The permutation test produced an equal or a longer tree in most cases (P < 0,0001), thus confirming the presence of a phylogenetic signal in interspecific variation of sexual dimorphism in the wing shape.

In the Procrustean distance between the wing shapes of females and males, the minimum phylogenetic signal was observed: λ = 0,00007, P = 1; K = 0,69, P = 0,15. The most significant phylogenetic signal was found for the canonical coefficients of landmarks X1 (λ = 0,99, P = 0,05; K = 1,19, P = 0,003), Y1 (λ = 0,99, P = 0,007; K = 1,31, P = 0,004), Y2 (λ = 0,99, P = 0,02; K = 1,23, P = 0,005).

Discussion

Most of the studied species of Dolichopodidae showed a significant sexual dimorphism of wing shape and/or size, with an insignificant influence of allometry on shape variability. However, the sexual dimorphism of wings in the family is heterogeneous: species of one subfamily showed that the wing size of females exceeds that of males and vice versa; besides, we can distinguish species with significant sexual differences in both wing shape and size (Arg. diaphana), species with insignificant sexual differences both in shape and size (Camp. scambus), and species with significant differences in wing size and insignificant differences in shape (Rh. commune), and also species with slight sexual differences in wing size, but high differences in shape (Arg. leucocephala, Eth. chalybea). This means that different species are influenced by various selection factors, which may act together or independently on both sexes.

Studies show that female insects are more often larger than males because of the high correlation between body size and fecundity [26]. This may explain that in most cases, the wings of female dolichopodids are larger than those of males since wing size directly correlates with body size. This regularity is well documented among Rhaphium species, where differences in body sizes of females and males are maximal. At the same time, sexual dimorphism of wings is shown in differences of size, but not of form (Rh. commune), or available differences in form are partially explained by allometry (Rh. appendiculatum).

In other cases, when males had larger wing sizes, this could be explained by other factors, e.g., more significant load on males’ wings due to different behavioural patterns: fights between males, and peculiarities of mating dance (for example, in Poec. regalis males).

Differences in the wing shape of males and females differed in each case but more often consisted in the displacement of 3, 4, and 5 landmarks, i.e., the change in the distal wing part, while the base remains unchanged. The proximal region of the wing is most susceptible to changes, both in the case of sexual, interspecies, and intraspecies variability [1, p. 695].

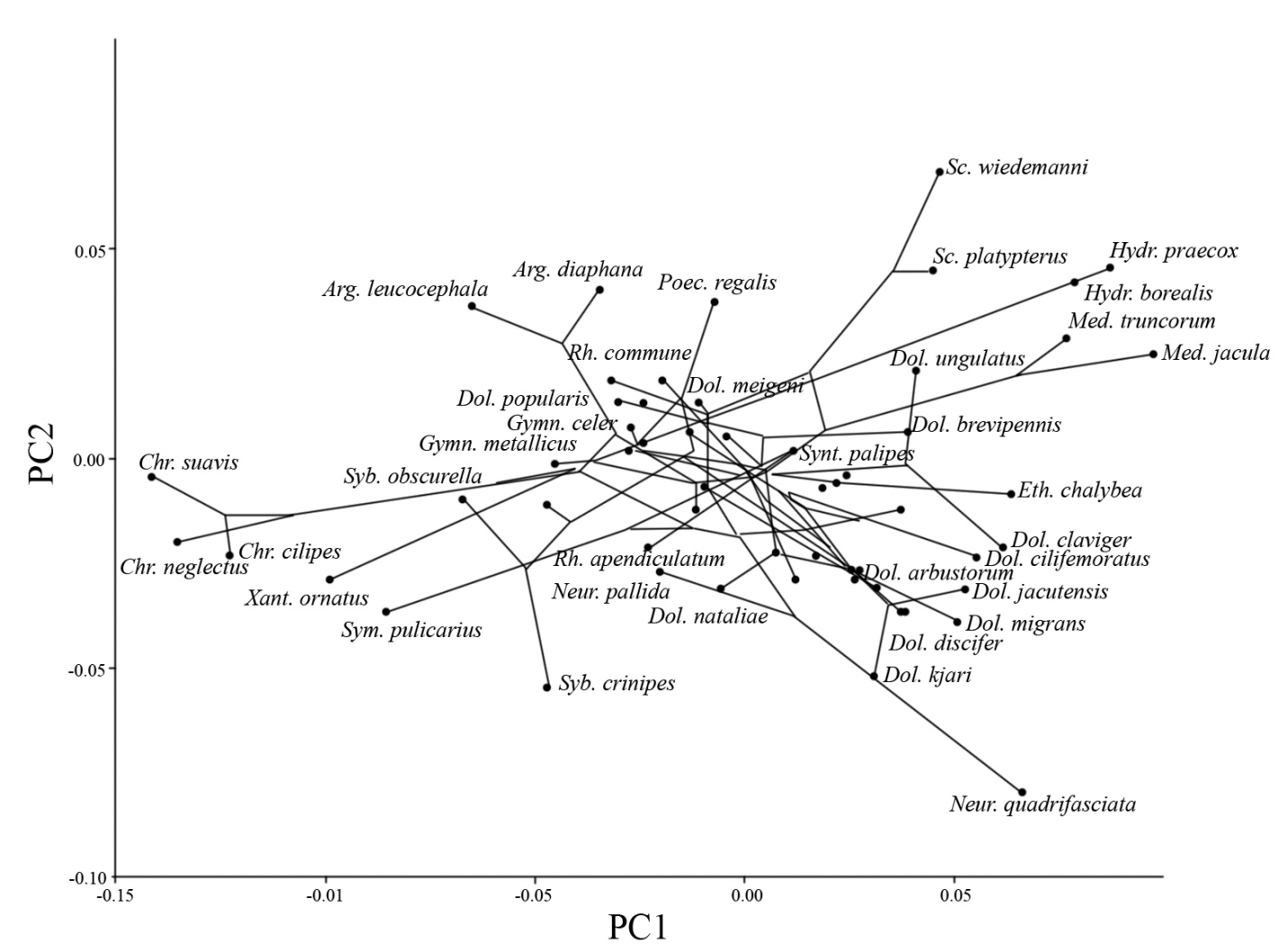

Figure 4 – Changes in the wing shape related to sexual dimorphism mapped onto phylogeny: the first (29,2%) and second (17,8%) principal components of variation



Regardless of the factors influencing sexual dimorphism of wings, our results show that patterns of sexual dimorphism can differ even in closely related species, since even species from different subfamilies turned out to be close in form. This is probably because, in each species, sexual dimorphism of wing shape and size results from complex interactions between several factors of selection that depend on the specific biology, genetic and ecological features, and ontogenetic history of each sex.

Although sexual dimorphism of wing shape appears to be somewhat dependent on common ancestry (the overall phylogenetic signal of sexual dimorphism was reliable), the absence of a significant phylogenetic signal for seven out of nine studied wing points indicates that sexual dimorphism of shape evolved, at least in part, in each studied species.

Conclusion

Our study demonstrates that interspecific differences in the sexual distinction of wing shape in dolichopodids are most often nonallometric and do not depend on phylogenetic relationships between species. These differences are likely the result of a complex interaction of intra-sex competition and other types of selection acting with different intensity in each sex and on several interrelated characteristics, such as body size, wing size, and shape. Overall, the present study results demonstrate that the mechanisms responsible for the emergence of sex differences in wings can form different and complex patterns of sexual dimorphism in the family.

×

About the authors

Mariya Aleksandrovna Chursina

Voronezh State Pedagogical University

Email: chursina.1988@list.ru

candidate of biological sciences, associate professor of Biology of Animals and Plants Department

Russian Federation, Voronezh

Olga Olegovna Maslova

Voronezh State Pedagogical University

Author for correspondence.
Email: oom777@yandex.ru

candidate of biological sciences, associate professor of Biology of Animals and Plants Department

Russian Federation, Voronezh

References

  1. Chursina M.A., Negrobov O.P. Phylogenetic signal in the wing shape in the subfamily Dolichopodinae (Diptera, Dolichopodidae) // Entomological Review. 2018. Vol. 98. P. 515-527. DOI: 10,1134/S0013873818050019.
  2. Richards O.W. Sexual selection and allied problems in the insects // Biological Reviews of the Cambridge Philosophical Society. 1927. Vol. 2 (4). P. 298-364. doi: 10.1111/j.1469-185X.1927.tb01401.x.
  3. Land M.F. The visual control of courtship behaviour in the fly Poecilobothrus nobilitatus // The Journal of Comparative Physiology. 1933. Vol. 173. P. 595-603. doi: 10.1007/BF00197767.
  4. Blomberg P.B., Garland T., Ives A.R. Testing for phylogenetic signal in comparative data: behavioral traits are more labile // Evolution. 2003. Vol. 57 (4). P. 717-745. doi: 10.1111/j.0014-3820.2003.tb00285.x.
  5. Novakova N., Robovsky J. Behaviour of cranes (family Gruidae) mirrors their phylogenetic relationships // Avian Research. 2021. Vol. 12. P. 1-11. doi: 10.1186/s40657-021-00275-4.
  6. Gidazevski N.A., Baylac M., Klingenberg C.P. Evolution of sexual dimorphism of wing shape in the Drosophila // BMC Evolutionary Biology. 2009. Vol. 9. P. 110-121. doi: 10.1186/1471-2148-9-110.
  7. Backer R.H., Wilkinson G.S. Phylogenetic analysis of sexual dimorphism and eye-span allometry in stalk-eyed flies (Diopsidae) // Evolution. 2001. Vol. 55 (7). P. 1373-1385. doi: 10.1111/j.0014-3820.2001.tb00659.x.
  8. Bonduriansky R. Convergent evolution of sexual shape dimorphism in Diptera // Journal of Morphology. 2006. Vol. 267. P. 602-611. doi: 10.1002/jmor.10426.
  9. Sivinski J., Pereira R. Do wing markings in fruit flies (Diptera: Tephritidae) have sexual significance? // Florida Entomologist. 2005. Vol. 88 (3). P. 321-324. doi: 10.1653/0015-4040(2005)088[0321:DWMIFF]2.0.CO;2.
  10. Sivinski J. Ornaments in Diptera // Florida Entomologist. 1997. Vol. 80 (2). P. 142-164. doi: 10.2307/3495551.
  11. GenBank. National Center for Biotechnology Information [Internet] // https://www.ncbi.nlm.nih.gov.
  12. Bernasconi M.V., Pollet M., Ward P.I. Molecular systematics of Dolichopodidae (Diptera) inferred from COI and 12S rDNA gene sequences based on European exemplars // Invertebrate Systematics. 2007. Vol. 21. P. 453-470. doi: 10.1071/IS06043.
  13. Germann C., Pollet M., Tanner S., Backeljau T., Bernasconi M.V. Legs of deception: disagreement between molecular markers and morphology of long-legged flies (Diptera, Dolichopodidae) // Journal of Zoological Systematics and Evolutionary Research. 2010. Vol. 48 (30). P. 238-247. doi: 10.1111/j.1439-0469.2009.00549.x.
  14. Bernasconi M.V., Pollet M., Varini-Ooijen M., Ward P.I. Phylogeny of European Dolichopus and Gymnopternus (Diptera: Dolichopodidae) and the significance of morphological characters inferred from molecular data // European Journal of Entomology. 2007. Vol. 104. P. 601-617. doi: 10.14411/eje.2007.075.
  15. Pollet M., Germann C., Bernasconi M.V. Phylogenetic analyses using molecular markers reveal ecological lineages in Medetera (Diptera: Dolichopodidae) // Canadian Entomologist. 2010. Vol. 143. P. 662-673. doi: 10.4039/n11-031.
  16. Germann C., Pollet M., Wimmer C., Bernasconi M.V. Molecular data sheds light on the classification of long-legged flies (Diptera: Dolichopodidae) // Invertebrate Systematics. 2011. Vol. 25. P. 303-321. doi: 10.1071/IS11029.
  17. Hall T.A. BioEdit: a user-friendly biological sequence alignment editor and analysis program for Window 95/98/NT // Nucleic Acids Symposium Series. 1999. Vol. 41. P. 95-98. doi: 10.14601/Phytopathol_Mediterr-14998u1.29.
  18. Kumar S., Stecher G., Li M., Knyaz C., Tamura K. Mega X: molecular evolutionary genetics analysis across computing platforms // Molecular Biology and Evolution. 2018. Vol. 35 (6). P. 1547-1549. doi: 10.1093/molbev/msy096.
  19. Rohlf F.J. tpsDig, Digitize Landmarks and Outlines, Version 2.05. Stony Brook, NY: Department of Ecology and Evolution, State University of New York [Internet] // https://www.sbmorphometrics.org/soft-dataacq.html.
  20. Zelditch M.L., Swiderski D.L. Geometric morphometrics for biologists: a primer. London: Elsevier Academic Press, 2004. 437 p.
  21. Klingenberg C.P. MorphoJ: an integrated software package for geometric morphometrics // Molecular Ecology Resources. 2011. Vol. 11. P. 353-357. doi: 10.1111/j.1755-0998.2010.02924.x.
  22. Pagel M. Inferring the historical patterns of biological evolution // Nature. 1999. Vol. 401 (6756). P. 677-884. doi: 10.1038/44766.
  23. Freckleton R.P., Harvey P.H., Pagel M. Phylogenetic analysis and comparative data: a test and review of evidence // American Naturalist. 2002. Vol. 160 (6). P. 712-726. doi: 10.1086/343873.
  24. Revell L.J. Phytools: an R package for phylogenetic comparative biology (and other things) // Methods in Ecology and Evolution. 2012. Vol. 3. P. 217-223. doi: 10.1111/j.2041-210X.2011.00169.x.
  25. Kembel S.W., Cowan P.D., Helmus M.R., Cornwell W.K., Morlon H., Ackerly D.D., Blomberg S.P., Webb C.O. Picante: R tools for integrating phylogenies and ecology // Bioinformatics. 2010. Vol. 26. P. 1463-1464. doi: 10.1093/bioinformatics/btq166.
  26. McLachlan A.J. Sexual dimorphism in midges: strategies for flight in the rain-pool dweller Chironomus imicola (Diptera: Chironomidae) // Journal of Animal Ecology. 1986. Vol. 55. P. 261-267. doi: 10.1007/BF00008145.
